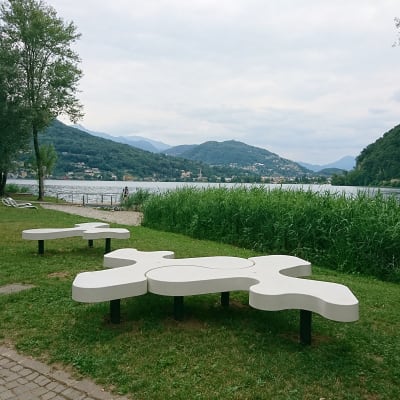

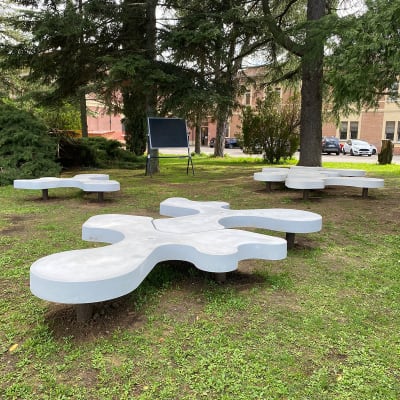

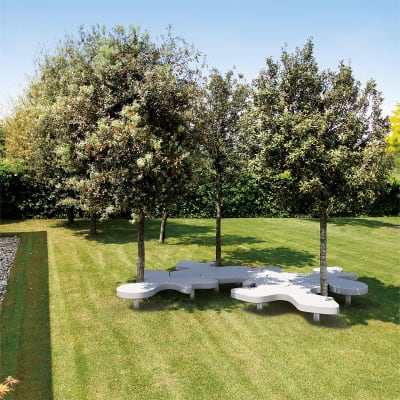

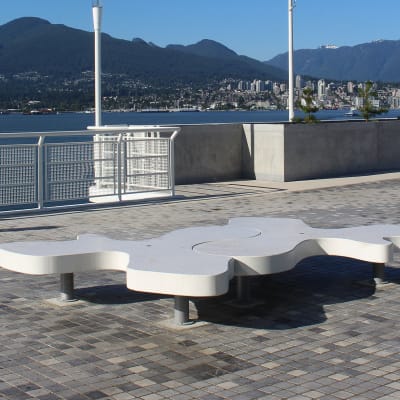

Designed by Pio & Tito Toso, Puzzle is a monolithic pre-cast concrete bench in a leaf-like organic form in white, grey or dark grey colour. Puzzle can be used on its own or combined to form various playful shapes and layouts. The curved edges and flat top are great for playgrounds and schools, plus the size makes Puzzle ideal for lounging and family picnics.

Check your project can accommodate the minimum order quantity of this item
Select your finish
Select your fixing type

33 x RAL powder-coat colours

2135mmW x 2090mmD x 425mmH

Body
Precast high performance concrete (HPC) with stone aggregate
3 colours: White, Grey, Dark Grey

Body Finish
Velluto sides and polished top

Optional
Clear anti-graffiti coating

Supports
Powder-coated steel

680kg

12+ weeks.

Assembly required of legs to concrete plane (by others).

Product supplied packed on pallets. Lifting equipment required for receipt and placement of concrete product (by others).

Supplied with ferrules, eyebolts and caps.

Surface or sub-surface fixed by others via threaded rod (supplied).

Precast Concrete
Cleaning
Remove any loose surface deposits with a brush.

Regularly wash the coating using a solution of warm water and non-abrasive, pH neutral detergent solution (with low wax content).

Thoroughly rinse the surfaces after cleaning to remove all residues. You can use a sponge, a soft bristle brush or pressure water cleaners. For pressure cleaners ensure you use cold or warm water and average pressure. Rinse after with fresh water and leave to dry.

Do not use abrasive sponges, discs, or brushes.

Do not use corrosive detergents, descaling agents, or acidic components (bleach, ammonia, vinegar, abrasive pastes).

For cleaning marks or solidified substances from the surface use slightly abrasive sponges for non-stick ceramic pans, accurately and lightly treat the parts to be cleaned as above. Please check with Botton + Gardiner for advice relating to cleaning special circumstances (i.e. stains from paint, acid, etc.) as required.

Maintenance
For surfaces prone to additional wear like that used for street furniture, regular treatment is recommended (at least every 2 years) with products containing high wax content. Evenly apply the product with a soft cloth and polish with a circular motion.

Avoid the products from being placed on surfaces subject to infiltrations or stagnant water puddles.

Powder-Coat
Cleaning
Carefully remove any loose surface deposits with a wet sponge. Use a soft brush (non-abrasive) and a dilute solution of a mild detergent, e.g. pH-neutral liquid hand dishwashing detergent in warm water (do not use solvents) to remove dust, salt and other deposits. Ensure you thoroughly rinse the surfaces with clean fresh water after cleaning to remove all residues.

Do not use turpentine, white spirits, thinners, or other aggressive solvents on powder-coating (these may be harmful to the extended life of the powder coated surface and should be avoided as the damage may not be visible immediately and may take up to 12 months to appear).

Do use isopropyl alcohol or Methylated spirits and rinse with warm soapy water.

Do not rub powder-coating excessively, especially metallic finishes.

Maintenance
Painted surfaces which become scratched can be restored, by using the colour touch-up sprays. 400ml cans of Metalco’s standard RAL are available upon request - contact Botton + Gardiner to arrange. The colour should be sprayed from a 10-20cm distance on the surface which has been previously cleaned from dust and dirt. Drying is achieved in about 15 minutes. For colours not included in our standard chart, touch-up liquid colour can be requested.

If, however, on steel products, damage is deep and breaks the zinc protective coating below the paint, it will be necessary to proceed with an application of a zinc spray between the phase of cleaning and repainting. Botton + Gardiner can, upon request, provide an aerosol for retouching the zinc coating.

The reproductions of colours in the brochure are not a true RAL match. To compare the relative RAL colours, use a commercial RAL card. In case of any doubt about the proper maintenance procedure, please contact Botton + Gardiner for advice.

5-year warranty. View the warranty for more details.

Upon request, when technically feasible, it is possible to perform polishing operations.

The finished products are treated with a protective varnish, and upon request, anti-graffiti treatment can also be applied.

Minimum order quantity: 4 pcs
20ft container fits 4 pcs
40ft container fits 10 pcs
